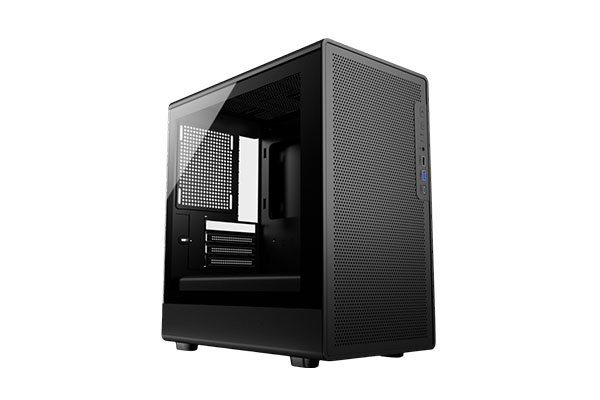

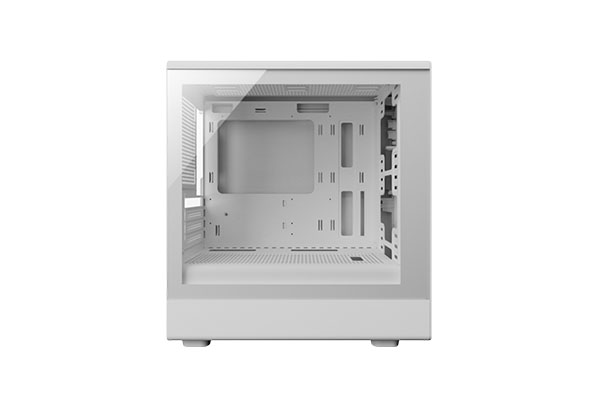

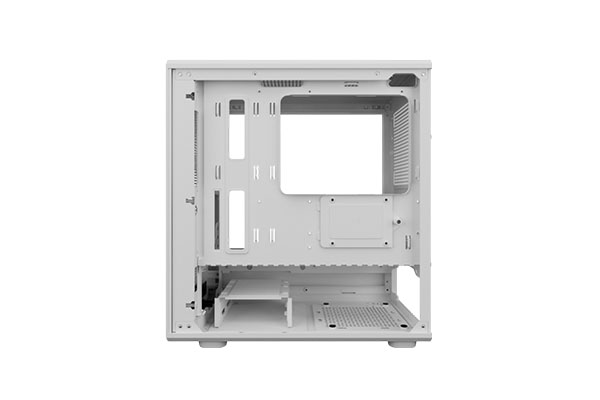

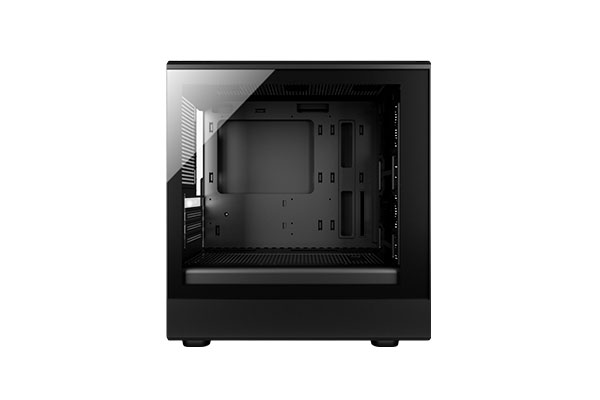

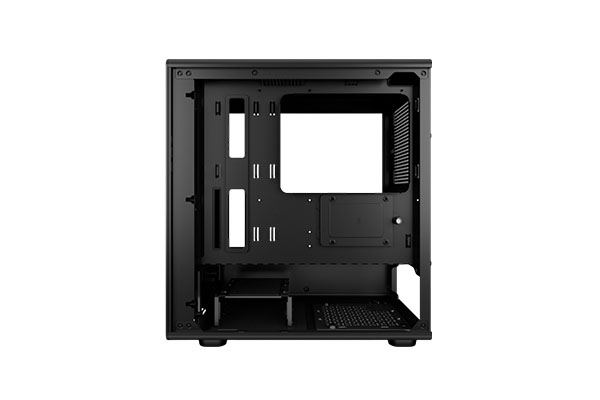

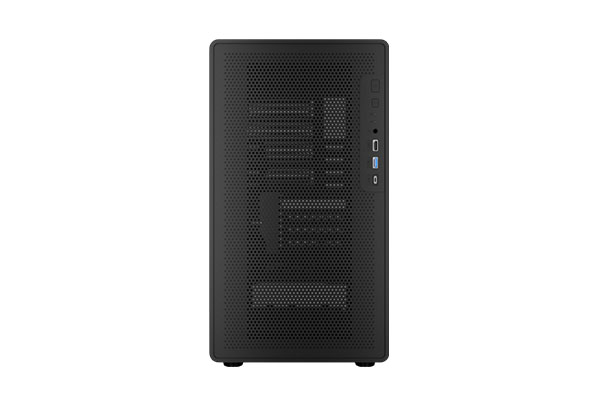

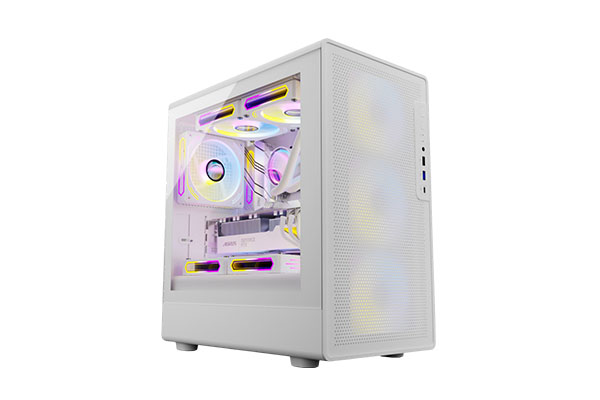

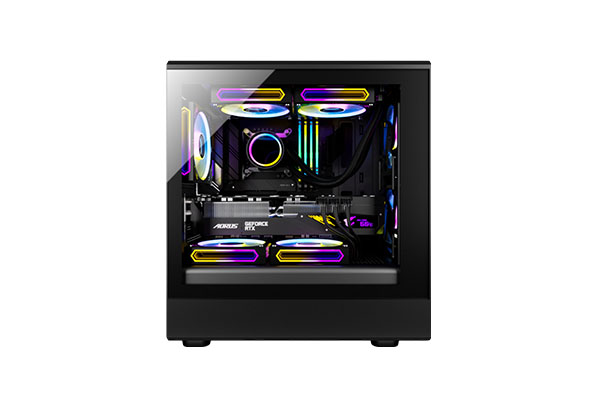

R08-R240 Chassis Specifications | |
Product Name | R08 |
Rack Model | R240 |
Chassis Type | Micro chassis with power supply at the bottom |
Rack Dimensions | L365*W220*H395MM |
Product Dimensions | L370*W220*H408MM |
Rack material | Left side panel: optional tempered glass and hardware side panel. the left side panel of the half-clad partition version can only be equipped with glass. Right side panel: SPCC 0.5MM Other parts SPCC 0.4mm, |
Applicable motherboard | M-ATX/ITX |
5.25" optical drive bay | None |
3.5" exposed bay | None |
Hard disk slot | 3.5"HDD*2 or 3.5"HDD*1+2.5"SSD*1 |
Expansion slot | 4PCS |
CPU height | 175mm |
Memory stick height limit | 43mm (after water cooling on the top) |
Graphic card length limit | 329MM (Max) |
Power supply type | ATX power supply |
Power supply length | MAX:170mm |
Rear wiring space | MAX:21MM |

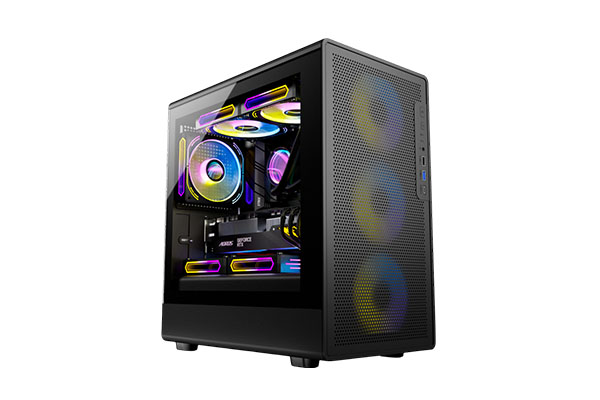

Air cooling system | Rear: 12CM fan*1 Front: 12CM fan*3/14CM fan*2 Top: 12CM fan*2 or 14CM fan*2 Motherboard: 12CN fan*2 |

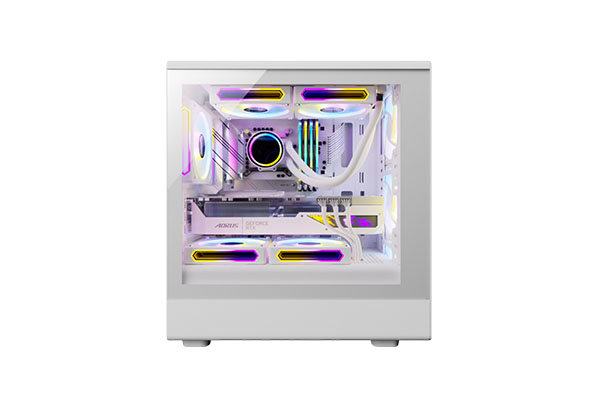

Water cooling system | Top: 240mm/280mm water cooling, Rear: 120mm water cooling |
Lock-free tool | The left side glass is lock-free |
Plastic foot pads | Yes |
Dust screen | The bottom and top are PVC dustproof nets |

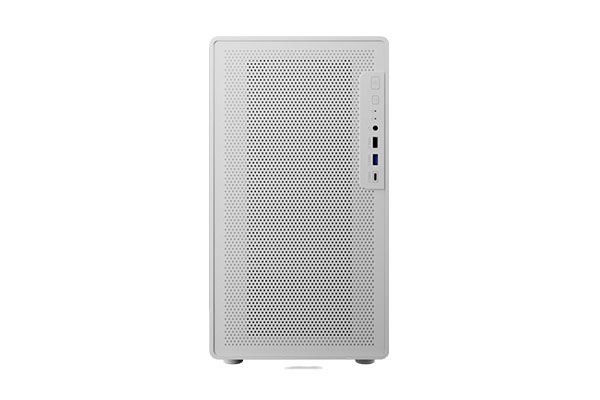

Front interface | USB1.0*1+USB3.0*1+HD AUDIO (Type-C*1 optional) |
Graphics card support | Optional |
Net weight |
|
Gross weight |
|
Carton size | 450X270X445MM |
Cabinet quantity | |
