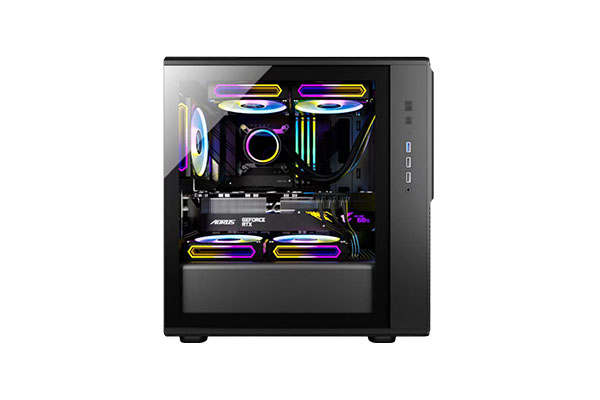

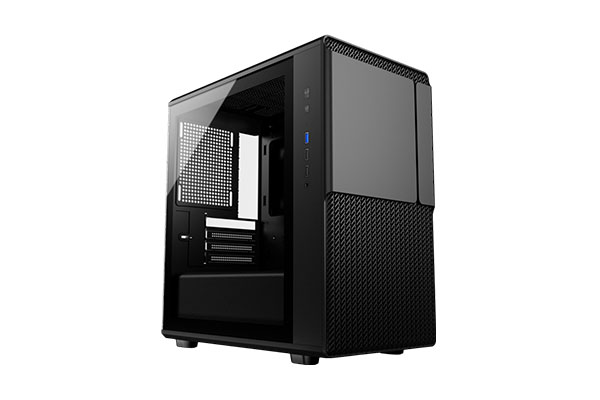

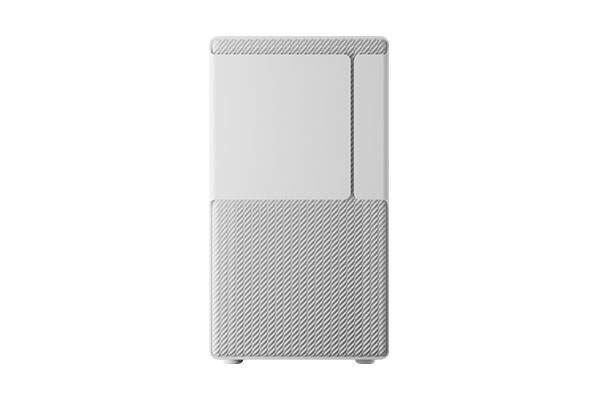

Chassis R16-R240

R16-R240 chassis specification


Product Name

R16

Rack Model

R240

Chassis type

Power supply under micro chassis

Rack size

L365*W220*H395MM

Product size

L370*W220*H408MM

Frame material

Left side panel: optional tempered glass and hardware side panel;
the left side panel of the half-clad partition version can only be equipped with glass;

Right side panel: SPCC 0.5MM

Other parts SPCC 0.4mm,

Applicable motherboard

M-ATX/ITX

5.25" optical drive bay

none

3.5" exposed compartment

none

Hard disk slot

3.5"HDD*2 or 3.5"HDD*1+2.5"SSD*1

Expansion slots

4PCS

CPU Height

175mm

Memory limit

43mm (after water cooling on top)

Graphics card length limit

329MM（Max）

Power Type

ATX Power Supply

Power supply length

MAX:170mm

Back wiring space

MAX:21MM

Air cooling system

Rear: 12CM fan*1
Front: 12CM fan*3/14CM fan*2
Top: 12CM fan*2 or 14CM fan*2
Motherboard: 12CM fan*2

Water cooling system

Top: 240mm/280mm water cooling,

Rear: 120mm water cooling

Lock-free tools

Left side glass lock-free

Plastic foot pads

Have

Dust screen

PVC dust screen at the bottom and top

Front interface

USB1.0*1+USB3.0*1+HD AUDIO (Type-C*1 optional)

Graphics card support

Optional

Net weight

Gross Weight

Carton size

450X270X445MM

Cabinet volume
