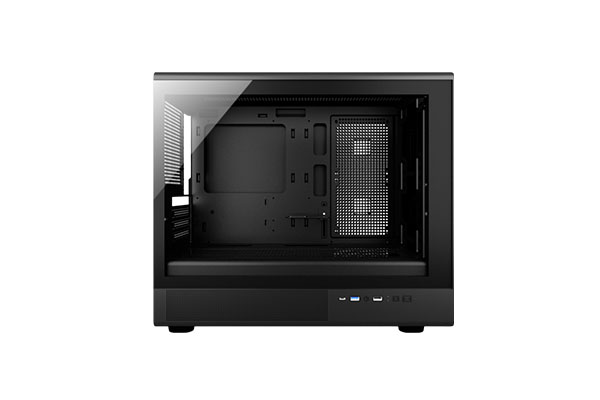

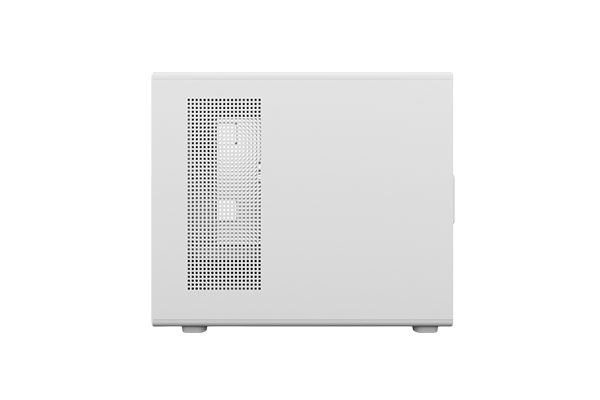

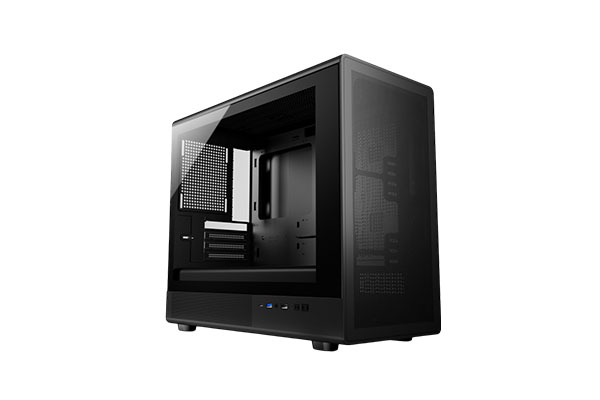

R07-R360 chassis specification | |
Product name | R07 |
Rack model | R360 |
Chassis type | Micro chassis with power supply at the bottom |
Rack size | L455*W220*H395MM |
Product size | L460*W220*408MM |
Rack material | The left side panel can be equipped with tempered glass and hardware side panel. The left side panel of the semi-enclosed partition version can only be equipped with glass, not hardware side panel. The steel material is SPCC. The thickness of the right side panel is 0.5mm, and the thickness of other parts is 0.4mm. |
Applicable motherboard | M-ATX/ITX |
5.25" optical drive slot | None |
3.5" exposed slot | None |
3.5" hard disk slot | 2PCS |
2.5" SSD | 1PCS |
Expansion slot | 4PCS |
Memory stick height limit | 43MM (after water cooling on the top) |
CPU height | 174mm |
Supported graphics card | MAX:420MM long graphics card |
Power supply type | ATX power supply |
Power supply length | MAX:240mm |
Rear wiring space | MAX:21MM |
Air cooling system | Rear: 12CM fan*1 Front: 12CM fan*3 or 14CM fan*2 Top: 12CM fan*3 or 14CM fan*2 Motherboard: 120MM fan*2 Power supply partition: 120MM fan*3 |
Water cooling system | Top: 360mm/240mm/280mm water-cooled Rear: 120mm water-cooled |
Lock-free tool | The left side glass is lock-free |
Plastic foot pad | Yes |
Dust screen | PVC dust screen on the bottom and top |
Front interface | USB1.0*1+USB3.0*1+HD AUDIO |
Graphics card support frame | Optional |
Net weight |
|
Gross weight |
|
Carton size | 452*277*538MM |
Cabinet quantity | |
